1.00mm Pitch Connectors | Direct Manufacturer and Global Supplier



The 1.00mm pitch connector series delivers structured power and signal routing for space-conscious circuit assemblies. Positioned between ultra-fine pitch micro-connectors and 2.00mm power interconnects, this series offers mechanical retention alongside high contact density.


Configurable in wire-to-board, board-to-board, and FPC/FFC formats, the line incorporates positive locking mechanisms and high-temperature thermoplastic housings compatible with automated SMT reflow and through-hole soldering lines.




  • A1010(NSH)alternative NSH 1.00 Housing Terminal Wafer
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -25 deg C to +105 deg CContact resistance: 30m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • A1012(NSHD)alternative NSHD 1.00 Housing Terminal Wafer
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -25 deg C to +105 deg CContact resistance: 30m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • 1.00mm Single And Double Row Pin Heade And Female Heade Substitute Samtec
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -25 deg C to +105 deg CContact resistance: 30m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • Alternative JSTSM16B-SRSS-TB
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -40 deg C to +105 deg CContact resistance: 20m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • Alternative JST BM12B-SRSS-TB
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -40 deg C to +105 deg CContact resistance: 20m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • Alternative JST SM10B-SRSS-TB
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -40 deg C to +105 deg CContact resistance: 20m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V

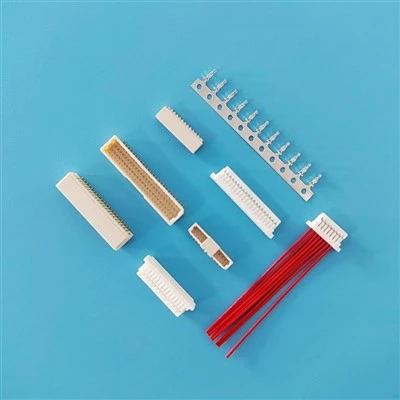

  • Alternative JSTSM09B-SRSS-TB
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -40 deg C to +105 deg CContact resistance: 20m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • Alternative JSTSM08B-SRSS-TB
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -40 deg C to +105 deg CContact resistance: 20m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • Alternative JST SM07B-SRSS-TB
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -40 deg C to +105 deg CContact resistance: 20m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • Alternative JST SM05B-SRSS-TB
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -40 deg C to +105 deg CContact resistance: 20m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • Alternative JST SM03B-SRSS-TB
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -40 deg C to +105 deg CContact resistance: 20m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
  • Alternative JST SM02B-SRSS-TB
    Specifications:Rated current: 1A AC, DCRated voltage: 50V DCTemperature range: -40 deg C to +105 deg CContact resistance: 20m Omega Max.Insulation resistance: 100M Omega Min.Voltage: 500V
First 1234567 Last

Specifications and Configuration Options


Parameter

Specification Details

Pitch

1.00 mm

Circuit Positions

2 to 50 pins (single and dual-row layout options)

Current Rating

1.0A to 3.0A per contact (dependent on conductor gauge and pin count)

Voltage Rating

125V AC/DC

Contact Resistance

Max. 20 mΩ initial

Insulation Resistance

Min. 100MΩ

Dielectric Withstanding Voltage

500V AC for 1 minute

Operating Temperature

-40°C to +105°C (including ambient temperature rise)

Applicable Wire Range

AWG #28 to AWG #32 (for crimp-type housing terminals)

Durability (Mating Cycles)

30 cycles

Housing Material

PA6T / LCP / PA9T, UL 94V-0 compliant, Natural / Black

Contact Material

Phosphor Bronze or Brass

Plating Options

Gold flash or selective gold over Nickel; Solder tails: Matte Tin over Nickel

Packaging Styles

Tape and Reel with pick-and-place cap, Tube, or Tray packaging



A1010(NSH)alternative NSH 1.00 Housing Terminal Wafer



Applications

Industrial Control and Automation: Mainboard signal headers for Programmable Logic Controllers (PLCs), I/O modules, and motor drives.


Battery Management Systems (BMS): Cell voltage sensing and temperature monitoring harness connections in compact battery packs.


Medical Equipment: Low-voltage signal transmission in portable diagnostic devices and patient monitor control panels.


Automotive Modules: Internal interconnections for climate control panels, infotainment displays, and sensor distribution hubs.





Manufacturing and Quality Control

Tooling Development: In-house mold fabrication and progressive die design allow rapid prototype modifications and controlled production cycles.


In-Line Optical Inspection: Automated Optical Inspection (AOI) systems verify pin position accuracy, coplanarity within <=0.10mm, and terminal pitch consistency during high-speed packaging.


Physical and Material Testing: Production lots undergo regular testing using low-level contact resistance (LLCR) meters, pull-force testers for crimp retention, and X-ray fluorescence (XRF) coating thickness analyzers.


Quality Certifications: Manufacturing sites operate under ISO 9001 and IATF 16949 management systems. All finished products comply with RoHS and REACH regulations.

Alternative JSTSM16B-SRSS-TB manufacturers



OEM/ODM and Bulk Supply

Customization Capabilities

Modifications supported for pin configurations, custom solder tail lengths, selective gold plating depths, housing color coding, and keyed latch modifications.

Engineering Deliverables

3D STEP models, 2D engineering drawings, PCB footprint recommendations, and evaluation samples provided within 3 to 5 business days.

Packaging and Delivery

Tape and Reel packaging conforming to EIA-481 guidelines, sealed inside anti-static moisture barrier bags with desiccant protection.

Production Capacity

Scalable monthly output exceeding 10 million units, with scheduled delivery contracts available for OEM buyers.





Our Factory



productcate-1-1





FAQ



Q: What is the standard minimum order quantity (MOQ) for 1.00mm pitch connectors?

A: Standard catalog parts carry an MOQ of 1,000 pieces per reel or package. Smaller sample quantities for engineering prototyping and board layout validation can be dispatched upon request.

Q: Are 3D CAD models and recommended PCB footprints available for design-in?

A: Yes. Complete 3D STEP files, 2D PDF dimensioned drawings, and recommended PCB pad layouts are accessible for integration into your CAD software.

Q: What is the maximum coplanarity tolerance for surface-mount (SMT) variants?

A: Terminal coplanarity across SMT contacts is strictly held to a maximum threshold of 0.10mm to ensure reliable solder joint formation and prevent open circuits during reflow.

Q: How do wire gauge selection and circuit count affect the current rating?

A: Current rating depends on terminal contact resistance, conductor cross-section (AWG size), and ambient operating temperature. Consult the temperature derating curve in our product datasheet for precise operating limits.

Q: Can these connectors withstand lead-free SMT reflow soldering profiles?

A: Yes. Connectors molded from high-temperature thermoplastics (LCP/PA6T/PA9T) are rated for peak reflow temperatures of up to 260°C for 10 seconds in accordance with JEDEC J-STD-020 standards.

Q: How is plating thickness verified on terminal contacts?

A: Gold and nickel plating depths are verified per production batch using non-destructive X-ray fluorescence (XRF) coating measurement equipment, with Material Test Reports (MTR) provided upon request.



modular-1
Information to Include in Your RFQ

To help us assess fit, compatibility and pricing, please provide:
Required circuit count and connector configuration.
Original part number, drawing, sample or PCB footprint, if available.
Wire gauge, insulation outer diameter and required cable length.
Current, voltage, operating temperature and environmental requirements.
Contact plating, compliance documentation and testing requirements.
Estimated annual demand, initial order quantity and target delivery schedule.

We're well-known as one of the most professional 1.00mm pitch suppliers in China. With abundant experience, we warmly welcome you to buy bulk advanced 1.00mm pitch made in China here from our factory. If you have any enquiry about cooperation, please feel free to email us.
