Specifications:
Rated current: 1A AC, DC
Rated voltage: 30V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 100M Omega Min.
Withstand pressure: 200V AC/minute
Housing: PA46 94V-0 Gray
Terminal material: phosphor copper gold plated/tin

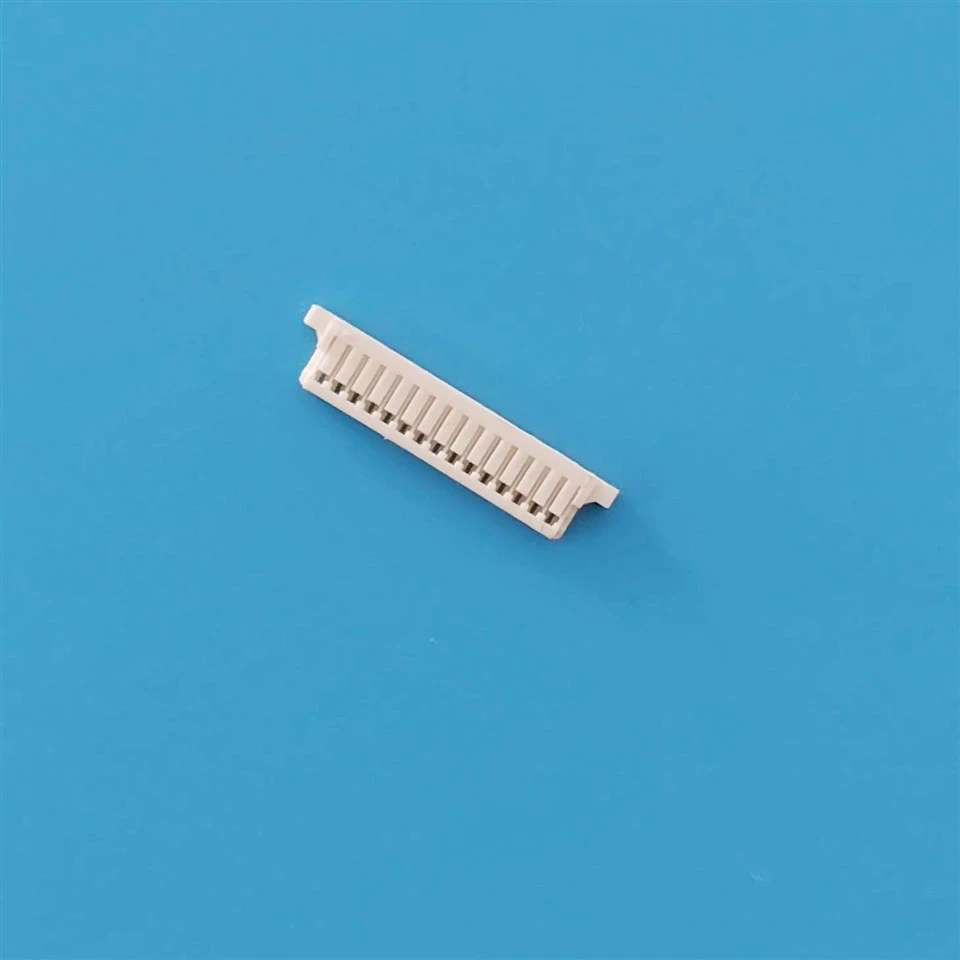

| Brand | Model A | Model B | Model C | Model D | CSG Model | Description |
| JST | SUHR-02V-S | SUHR-2V-S | A0801HF002AAP48001 | A0801HF002AAP48005 | 0.80mm(.0315in)Pitch,Housing,2 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | |
| JST | SUHR-03V-S | SUHR-3V-S | A0801HF003AAP48001 | A0801HF003AAP48005 | 0.80mm(.0315in)Pitch,Housing,3 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | |
| JST | SUHR-04V-S | SUHR-4V-S | A0801HF004AAP48001 | A0801HF004AAP48005 | 0.80mm(.0315in)Pitch,Housing,4 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | |
| JST | SUHR-05V-S | SUHR-5V-S | A0801HF005AAP48001 | A0801HF005AAP48005 | 0.80mm(.0315in)Pitch,Housing,5 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | |
| JST | SUHR-06V-S | SUHR-6V-S | A0801HF006AAP48001 | A0801HF006AAP48005 | 0.80mm(.0315in)Pitch,Housing,6 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | |
| JST | SUHR-07V-S | SUHR-7V-S | A0801HF007AAP48001 | A0801HF007AAP48005 | 0.80mm(.0315in)Pitch,Housing,7 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | |
| JST | SUHR-08V-S | SUHR-8V-S | A0801HF008AAP48001 | A0801HF008AAP48005 | 0.80mm(.0315in)Pitch,Housing,8 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | |
| JST | SUHR-09V-S | SUHR-9V-S | A0801HF009AAP48001 | A0801HF009AAP48005 | 0.80mm(.0315in)Pitch,Housing,9 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | |
| JST | SUHR-10V-S | A0801HF010AAP48001 | A0801HF010AAP48005 | 0.80mm(.0315in)Pitch,Housing,10 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | ||
| JST | SUHR-11V-S | A0801HF011AAP48001 | A0801HF011AAP48005 | 0.80mm(.0315in)Pitch,Housing,11 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | ||
| JST | SUHR-12V-S | A0801HF012AAP48001 | A0801HF012AAP48005 | 0.80mm(.0315in)Pitch,Housing,12 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | ||
| JST | SUHR-13V-S | A0801HF013AAP48001 | A0801HF013AAP48005 | 0.80mm(.0315in)Pitch,Housing,13 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | ||
| JST | SUHR-14V-S | A0801HF014AAP48001 | A0801HF014AAP48005 | 0.80mm(.0315in)Pitch,Housing,14 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | ||
| JST | SUHR-15V-S | A0801HF015AAP48001 | A0801HF015AAP48005 | 0.80mm(.0315in)Pitch,Housing,15 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | ||
| JST | SUHR-16V-S | A0801HF016AAP48001 | A0801HF016AAP48005 | 0.80mm(.0315in)Pitch,Housing,16 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | ||
| JST | SUHR-18V-S | A0801HF018AAP48001 | A0801HF018AAP48005 | 0.80mm(.0315in)Pitch,Housing,18 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | ||
| JST | SUHR-20V-S | A0801HF020AAP48001 | A0801HF020AAP48005 | 0.80mm(.0315in)Pitch,Housing,20 Circuits,Single Row,Friction Lock,UL 94V-0,Grey | ||

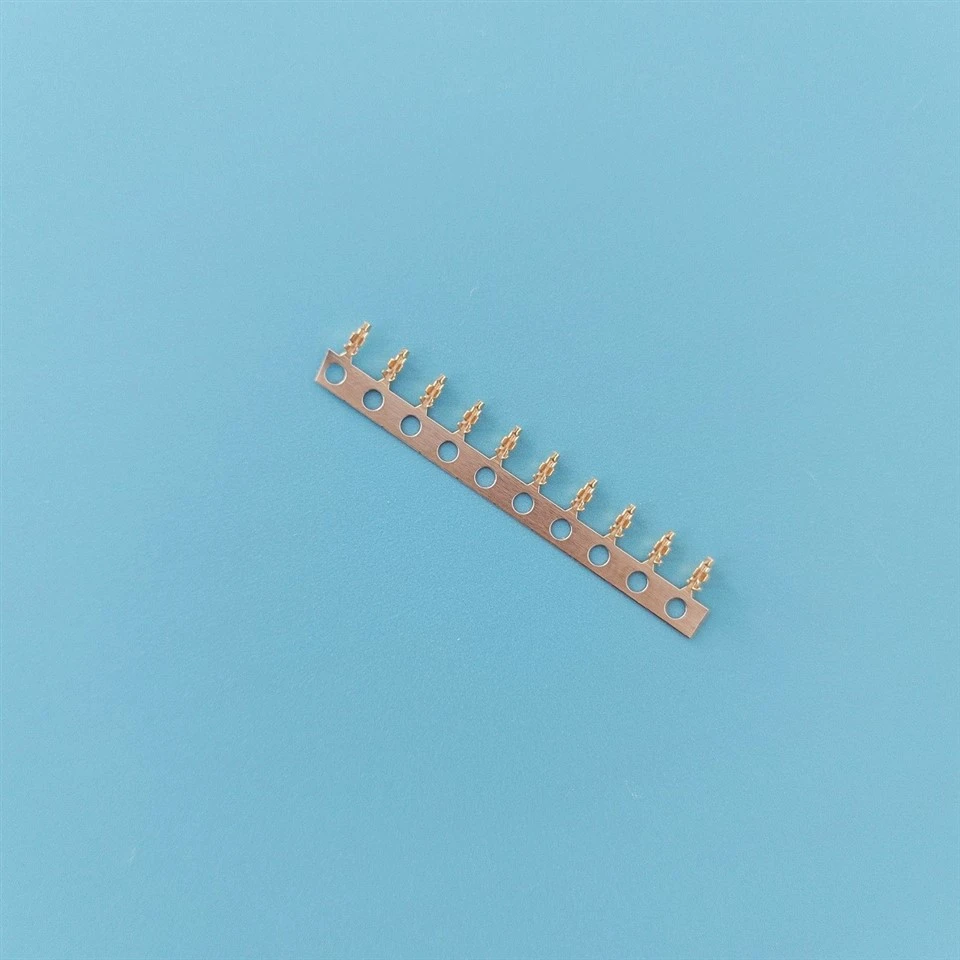

| JST | SSUH-003T-P0.15 | A0801M0ATP195 | A0801M0ATP001 | 0.80mm(.0315in)Pitch,Crimp Terminal,Reel,Tin(Sn)Plating | ||
| JST | SSUH-003G-P0.15 | A0801M0AGF195 | A0801M0AGF001 | 0.80mm(.0315in)Pitch,Crimp Terminal,Reel,Gold(Au)Plating | ||
| JST | SUHR-02V-S-B | SUHR-2V-S-B | A0801HF002ABP48001 | A0801HF002ABP48005 | 0.80mm(.0315in)Pitch,Housing,2 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | |
| JST | SUHR-03V-S-B | SUHR-3V-S-B | A0801HF003ABP48001 | A0801HF003ABP48005 | 0.80mm(.0315in)Pitch,Housing,3 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | |
| JST | SUHR-04V-S-B | SUHR-4V-S-B | A0801HF004ABP48001 | A0801HF004ABP48005 | 0.80mm(.0315in)Pitch,Housing,4 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | |
| JST | SUHR-05V-S-B | SUHR-5V-S-B | A0801HF005ABP48001 | A0801HF005ABP48005 | 0.80mm(.0315in)Pitch,Housing,5 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | |
| JST | SUHR-06V-S-B | SUHR-6V-S-B | A0801HF006ABP48001 | A0801HF006ABP48005 | 0.80mm(.0315in)Pitch,Housing,6 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | |
| JST | SUHR-07V-S-B | SUHR-7V-S-B | A0801HF007ABP48001 | A0801HF007ABP48005 | 0.80mm(.0315in)Pitch,Housing,7 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | |
| JST | SUHR-08V-S-B | SUHR-8V-S-B | A0801HF008ABP48001 | A0801HF008ABP48005 | 0.80mm(.0315in)Pitch,Housing,8 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | |
| JST | SUHR-09V-S-B | SUHR-9V-S-B | A0801HF009ABP48001 | A0801HF009ABP48005 | 0.80mm(.0315in)Pitch,Housing,9 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | |
| JST | SUHR-10V-S-B | A0801HF010ABP48001 | A0801HF010ABP48005 | 0.80mm(.0315in)Pitch,Housing,10 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | ||
| JST | SUHR-11V-S-B | A0801HF011ABP48001 | A0801HF011ABP48005 | 0.80mm(.0315in)Pitch,Housing,11 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | ||
| JST | SUHR-12V-S-B | A0801HF012ABP48001 | A0801HF012ABP48005 | 0.80mm(.0315in)Pitch,Housing,12 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | ||
| JST | SUHR-13V-S-B | A0801HF013ABP48001 | A0801HF013ABP48005 | 0.80mm(.0315in)Pitch,Housing,13 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | ||
| JST | SUHR-14V-S-B | A0801HF014ABP48001 | A0801HF014ABP48005 | 0.80mm(.0315in)Pitch,Housing,14 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | ||
| JST | SUHR-15V-S-B | A0801HF015ABP48001 | A0801HF015ABP48005 | 0.80mm(.0315in)Pitch,Housing,15 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | ||
| JST | SUHR-16V-S-B | A0801HF016ABP48001 | A0801HF016ABP48005 | 0.80mm(.0315in)Pitch,Housing,16 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | ||
| JST | SUHR-18V-S-B | A0801HF018ABP48001 | A0801HF018ABP48005 | 0.80mm(.0315in)Pitch,Housing,18 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | ||
| JST | SUHR-20V-S-B | A0801HF020ABP48001 | A0801HF020ABP48005 | 0.80mm(.0315in)Pitch,Housing,20 Circuits,Single Row,Friction Lock,Protrusions,UL 94V-0,Grey | ||
| JST | SSUH-004T-P0.15 | A0801M0ATP195 | A0801M0ATP001 | 0.80mm(.0315in)Pitch,Crimp Terminal,Reel,Tin(Sn)Plating | ||
| JST | SSUH-004G-P0.15 | A0801M0AGF195 | A0801M0AGF001 | 0.80mm(.0315in)Pitch,Crimp Terminal,Reel,Gold(Au)Plating |
