Specifications:
Rated current: 1A AC, DC
Rated voltage: 30V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 100M Omega Min.
Withstand pressure: 200V AC/minute
Housing: PA4T 94V-0 black
Terminal material: phosphor copper tin/gold plated
Pin body material: LCP-94V-0 black
PIN Pin material: phosphorus copper tin plating
Pin holder ground disc material: brass tin plated
| Brand | Model A | Model B | Model C | Model D | CSG Model | Description |

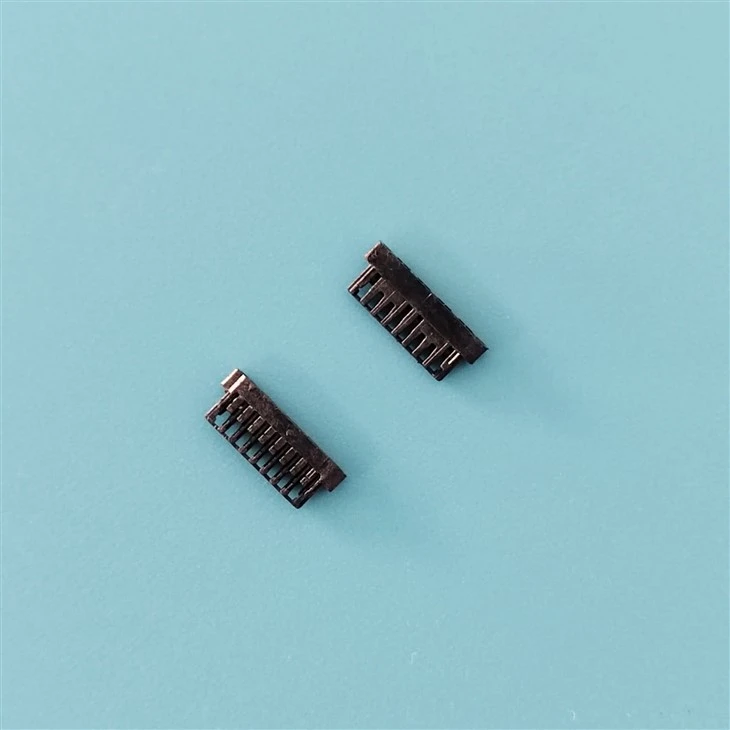

| Hirose | DF52-2P-0.8C | 668-0013-6 00 | DF52-02P-0.8C | A0802HF002AAP60195 | 0.80mm(.0315in)Pitch,Housing,2 Circuits,Single Row,Friction Lock,UL 94V-0,Black | |
| Hirose | DF52-3P-0.8C | 668-0026-8 00 | DF52-03P-0.8C | A0802HF003AAP60195 | 0.80mm(.0315in)Pitch,Housing,3 Circuits,Single Row,Friction Lock,UL 94V-0,Black | |
| Hirose | DF52-4P-0.8C | 668-0014-9 00 | DF52-04P-0.8C | A0802HF004AAP60195 | 0.80mm(.0315in)Pitch,Housing,4 Circuits,Single Row,Friction Lock,UL 94V-0,Black | |
| Hirose | DF52-5P-0.8C | 668-0027-0 00 | DF52-05P-0.8C | A0802HF005AAP60195 | 0.80mm(.0315in)Pitch,Housing,5 Circuits,Single Row,Friction Lock,UL 94V-0,Black | |
| Hirose | DF52-6P-0.8C | 668-0015-1 00 | DF52-06P-0.8C | A0802HF006AAP60195 | 0.80mm(.0315in)Pitch,Housing,6 Circuits,Single Row,Friction Lock,UL 94V-0,Black | |
| Hirose | DF52-8P-0.8C | 668-0016-4 00 | DF52-08P-0.8C | A0802HF008AAP60195 | 0.80mm(.0315in)Pitch,Housing,8 Circuits,Single Row,Friction Lock,UL 94V-0,Black | |
| Hirose | DF52-10P-0.8C | 668-0017-7 00 | A0802HF010AAP60195 | 0.80mm(.0315in)Pitch,Housing,10 Circuits,Single Row,Friction Lock,UL 94V-0,Black | ||
| Hirose | DF52-12P-0.8C | 668-0018-0 00 | A0802HF012AAP60195 | 0.80mm(.0315in)Pitch,Housing,12 Circuits,Single Row,Friction Lock,UL 94V-0,Black | ||
| Hirose | DF52-14P-0.8C | 668-0028-3 00 | A0802HF014AAP60195 | 0.80mm(.0315in)Pitch,Housing,14 Circuits,Single Row,Friction Lock,UL 94V-0,Black | ||
| Hirose | DF52-15P-0.8C | 668-0019-2 00 | A0802HF015AAP60195 | 0.80mm(.0315in)Pitch,Housing,15 Circuits,Single Row,Friction Lock,UL 94V-0,Black | ||
| Hirose | DF52-16P-0.8C | 668-0029-6 00 | A0802HF016AAP60195 | 0.80mm(.0315in)Pitch,Housing,16 Circuits,Single Row,Friction Lock,UL 94V-0,Black | ||
| Hirose | DF52-17P-0.8C | 668-0002-0 00 | A0802HF017AAP60195 | 0.80mm(.0315in)Pitch,Housing,17 Circuits,Single Row,Friction Lock,UL 94V-0,Black | ||
| Hirose | DF52-20P-0.8C | 668-0020-1 00 | A0802HF020AAP60195 | 0.80mm(.0315in)Pitch,Housing,20 Circuits,Single Row,Friction Lock,UL 94V-0,Black | ||

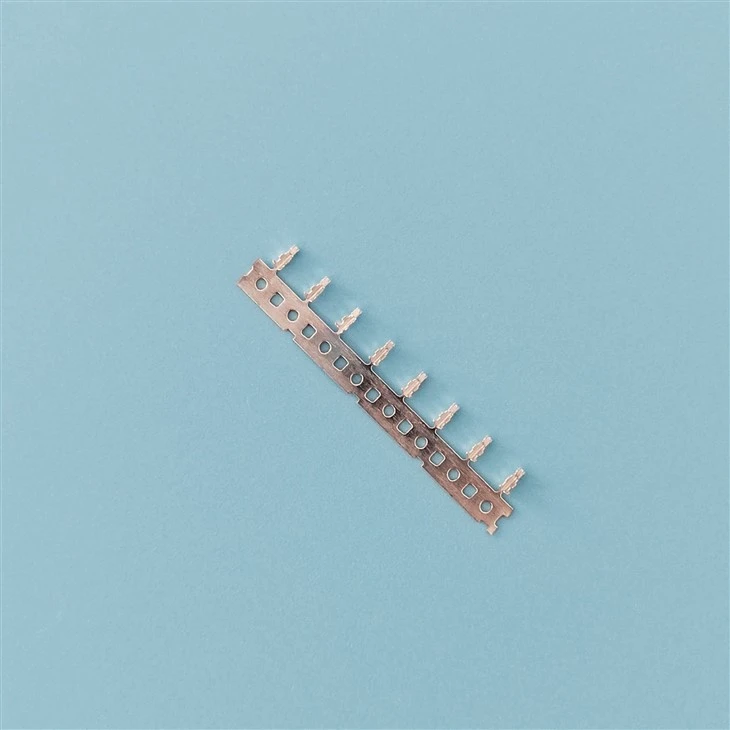

| Hirose | DF52-2832PCF | 668-0030-5 00 | A0802M0ATP195 | 0.80mm(.0315in)Pitch,Crimp Terminal,Reel,Tin(Sn)Plating | ||

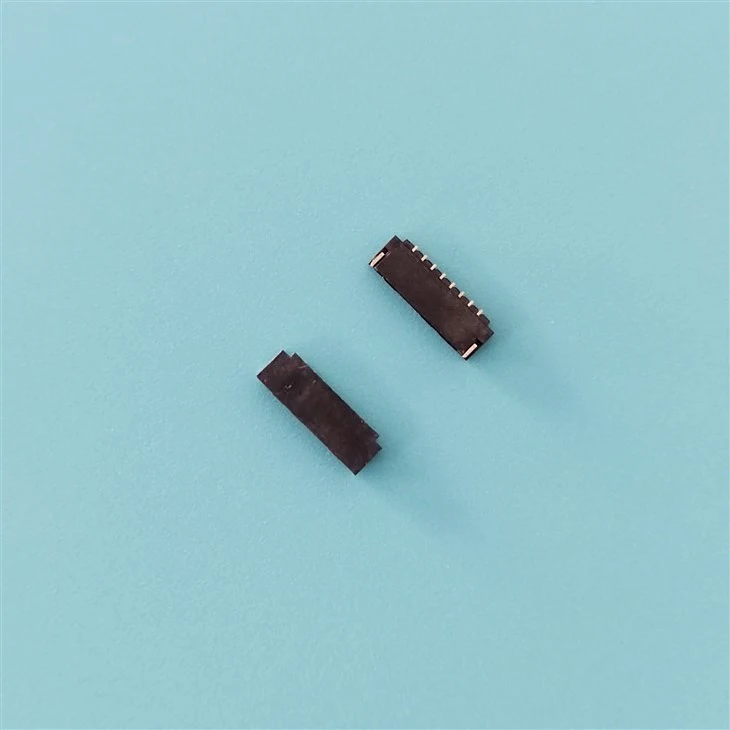

| Hirose | DF52-2S-0.8H(21) | 668-0004-5 21 | DF52-2S-0.8H(21) | A0802RS002AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,2 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-3S-0.8H(21) | 668-0022-7 21 | DF52-3S-0.8H(21) | A0802RS003AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,3 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-4S-0.8H(21) | 668-0005-8 21 | DF52-4S-0.8H(21) | A0802RS004AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,4 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-5S-0.8H(21)668-0023-0 21 | DF52-5S-0.8H(21) | A0802RS005AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,5 Circuits,Friction Lock,Tin(Sn)Plating,Black | ||
| Hirose | DF52-6S-0.8H(21) | 668-0006-0 21 | DF52-6S-0.8H(21) | A0802RS006AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,6 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-8S-0.8H(21) | 668-0007-3 21 | DF52-8S-0.8H(21) | A0802RS008AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,8 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-10S-0.8H(21) | 668-0008-6 21 | DF52-10S-0.8H(21) | A0802RS010AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,10 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-12S-0.8H(21) | 668-0009-9 21 | DF52-12S-0.8H(21) | A0802RS012AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,12 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-14S-0.8H(21) | 668-0024-2 21 | DF52-14S-0.8H(21) | A0802RS014AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,14 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-15S-0.8H(21) | 668-0010-8 21 | DF52-15S-0.8H(21) | A0802RS015AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,15 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-16S-0.8H(21) | 668-0025-5 21 | DF52-16S-0.8H(21) | A0802RS016AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,16 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-17S-0.8H(21) | 668-0001-7 21 | DF52-17S-0.8H(21) | A0802RS017AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,17 Circuits,Friction Lock,Tin(Sn)Plating,Black | |
| Hirose | DF52-20S-0.8H(21) | 668-0011-0 21 | DF52-20S-0.8H(21) | A0802RS020AALPTPB0195 | 0.80mm(.0315in)Pitch,Single Row,Header,SMD,Right-Angle,20 Circuits,Friction Lock,Tin(Sn)Plating,Black |
